Product Description:

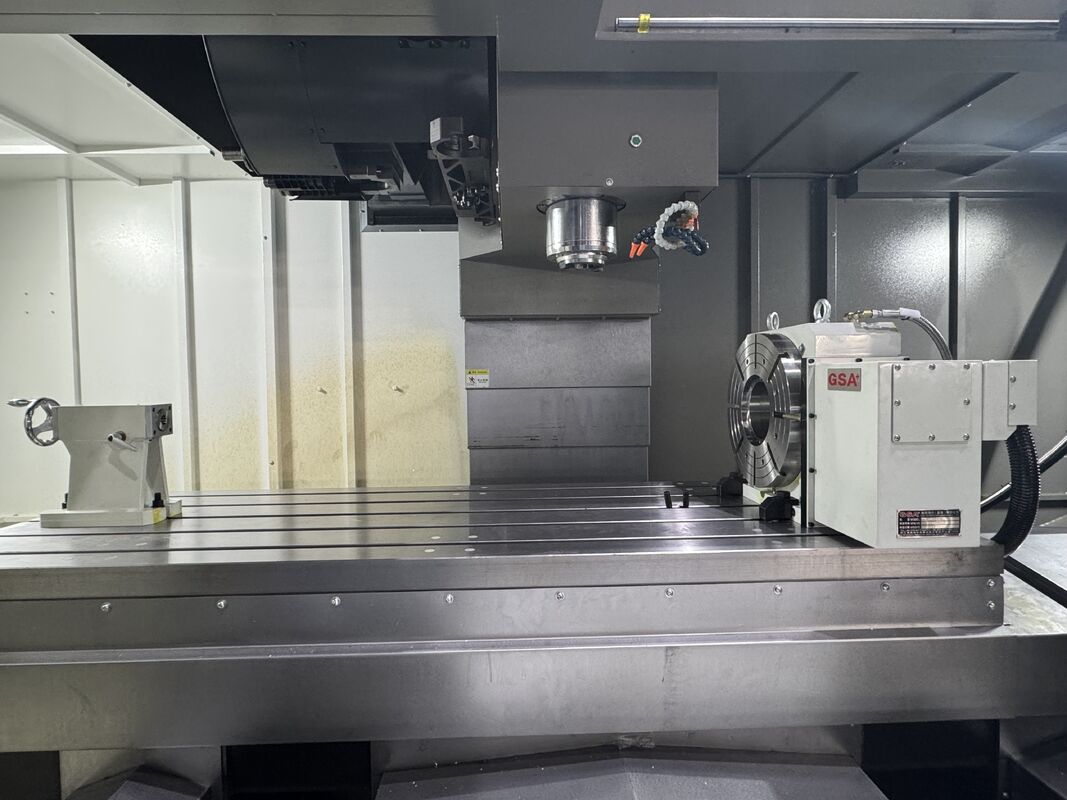

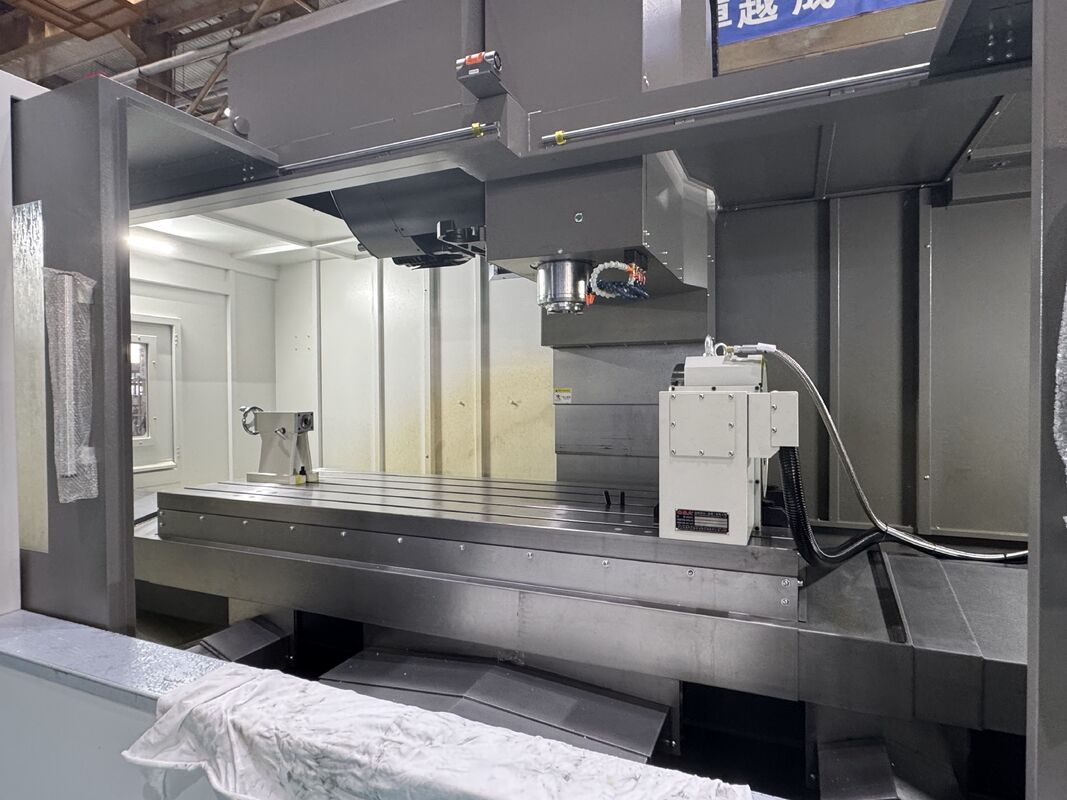

SMTCL VMC 2100B BT50 Heavy Vertical Machining Center
VMC-B through the typical series product description is a combination of market demand and development of a product, it is not only complete specifications, from the table 800×420mm to 2200×800mm, X-axis travel from 700mm to 2100mm; From the spindle configuration, we also achieve a variety, from the standard belt connection, direct connection 8000 to the output of 380Nm large torque.
VMC-B is a very cost-effective typical machine tool, ultra wide bed design to ensure the machine has the best support capacity and stability, and the bed adopts a large bevel structure, Y axis adopts split protection, making chip removal convenient and fast.
Product Features:
1,Classical Structure Design
- Super wide beveled bed
- Split cover of Y-axis
- Multistage filtered chain plate chip conveyo
2,New Update and Improvemer
- Improved the thermal stability of lead screw
- Improved the seal class of cover
- Reduced the thermal deformation of headstock
3,High Configuration, Wide Applicability
- Large machining range
- Standard chain plate chip conveyor
- 11/15 kw main motor
Product Details:
Product Paramenters:
| Item |
Unit |
VMC 2100B |
| Capacity |
X axis travel |
mm |
2100 |
| Y axis travel |
mm |
800 |
| Z axis travel |
mm |
800 |
| Spindle nose to table surface |
mm |
200-1000 |
| Worktable |
Table size (L×W) |
mm |
2200×800 |
| Max load on the table |
kg |
3000 |
| T-slot size |
mm |
22×5 |
| Spindle |
Spindle speed |
r/min |
6000 |
| spindle shank 7:24 |
|
BT50 |
| Spindle motor |
kw |
15/18.5 |
| Maximum output torque |
N.m |
95.4 |
| Feed rate |
X/Y/Z rapid traverse |
M/min |
18/18/18 |
| Feed rate |
MM/min |
1-10000 |
| A.T.C |
Tool storage capacity |
pc |
20 |
| Maximum tool length |
mm |
300 |
| Tool change time |
sec |
3.5 |
| Accuracy |
Positioning accuracy X/Y/Z |
mm |
0.010/0.008/0.010 |
| Repeatability positioning X/Y/Z |
mm |
0.008/0.006/0.008 |
| Others |
Overall dimensions(L×WxH) |
mm |
6705×3500×3910 |
| Net machine weight |
kg |
1700 |
| Total power requirment |
KVA |
37 |
OUR Service:
- Assemble and debug before delivery
- Respond within 24 hours and proceed to deal with the problem.
- 1 year free repair service (no-human damage only).
- Overall warehousing solution provided
Why Choose Us:
- Top quality sense, customers' requests come first
- 30 years + R & D history, the company was founded in 1993
- High-tech manufacturer with research anddesign capacity
- Stable and mature supplying system
- Young active sales and engineers for instant services(24 hours online)
- Upgrading on mechanism according to ergonomics and easy maintenance
- Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

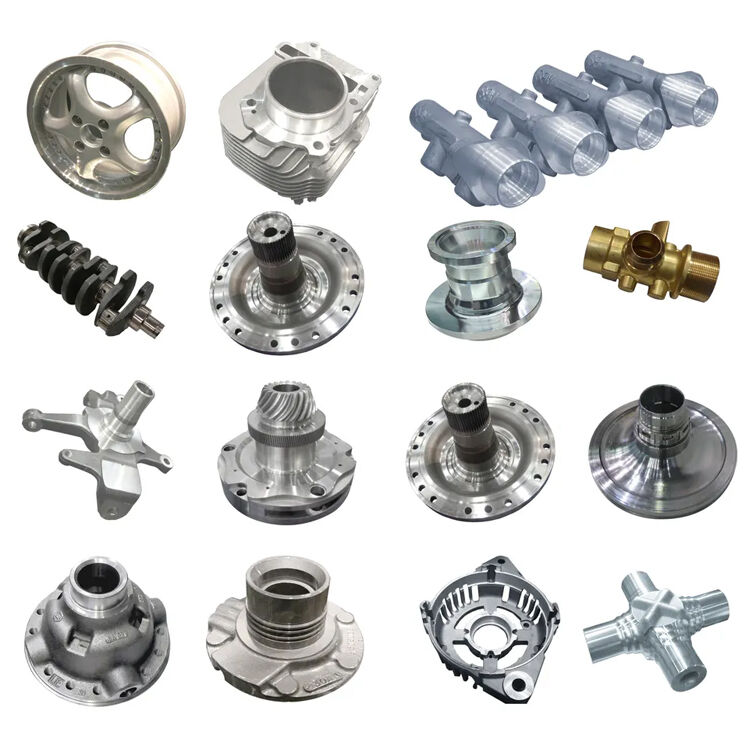

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
Exhibition:
FAQ:
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
