SMTCL HTC16H Horizontal CNC Lathe High Precision Small Parts Machining

Nombre de la Marca: SMTCL
Número de modelo: El HTC 16H
Lugar de origen: Porcelana
Certificación: CE ISO certification
Cantidad mínima de pedido: 1
Capacidad de suministro: 50 conjuntos por mes
Las etiquetas

Máquina del torno de la cama plana CKA6136

Máquina del torno de la cama plana 5.5KW

Máquina horizontal del CNC CKA6136

Detalles del producto

Nombre de la marca: SMTCL Número de modelo: El HTC16H
CNC o no: CNC palabra clave: Tornos de giro CNC horizontales
Longitud de Max.Cutting: 160 mm Diámetro de Max. Cutting.: 160 mm
Max. nadando por encima de la cama: 420 mm X viaje en eje: 145 mm
Viaje del eje z: 205 milímetros Velocidad del husillo: 6000 r/min
Resaltar

Small Parts Machining

,

High Precision CNC Lathe

,

SMTCL

Descripción del producto

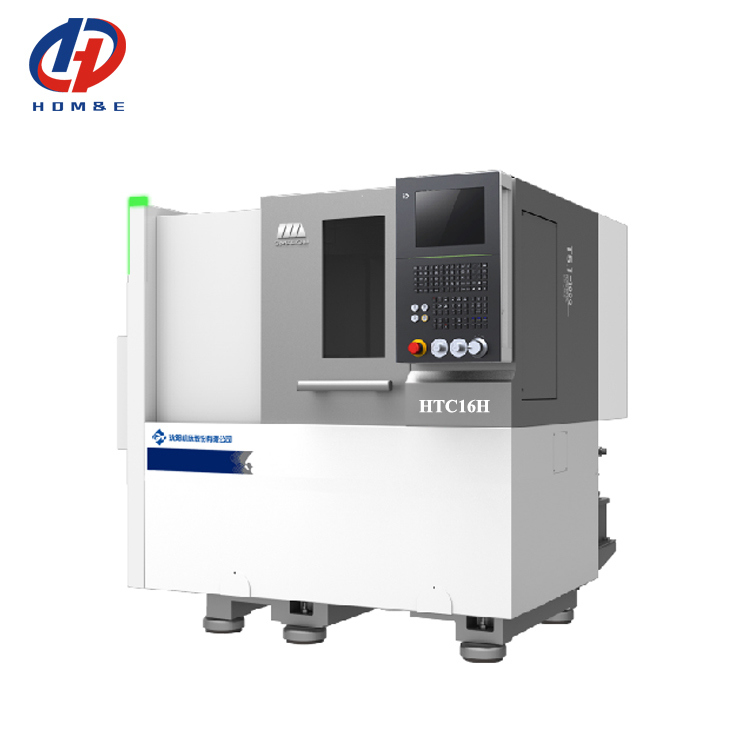

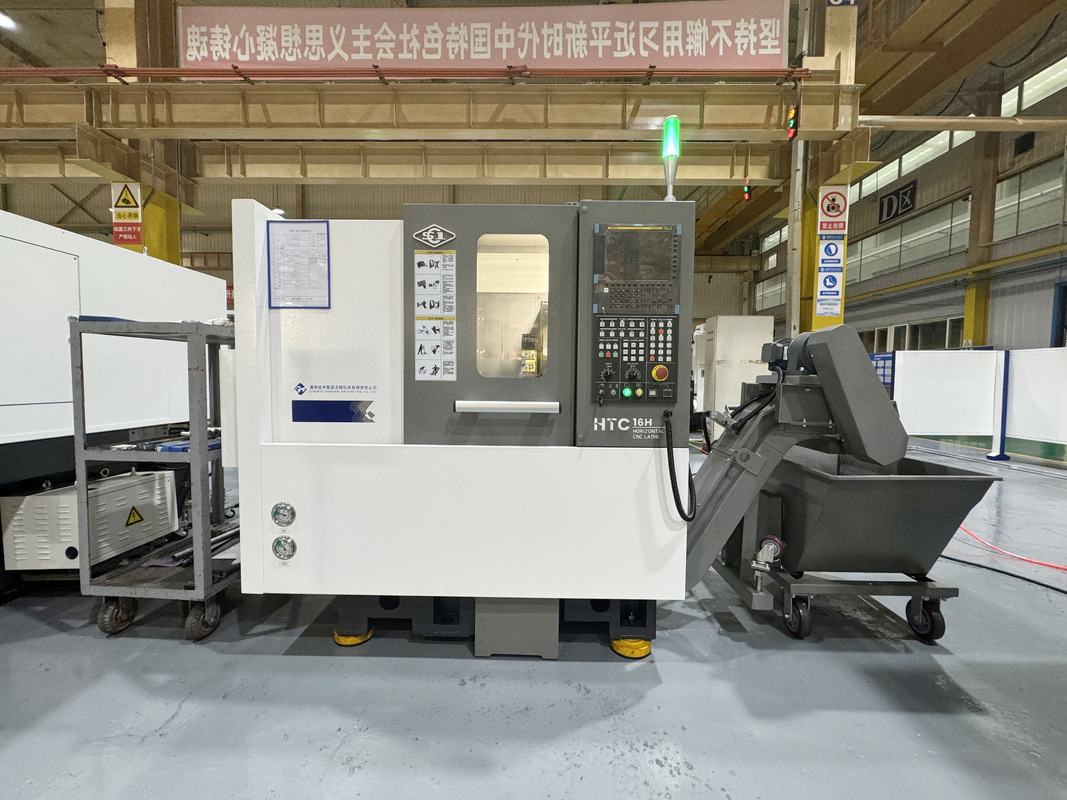

SMTCL HTC16H Horizontal CNC Lathe High Precision Small Parts Machining 0

Product Description:

SMTCL HTC16H Horizontal CNC Lathe | High Precision Small Parts Machining

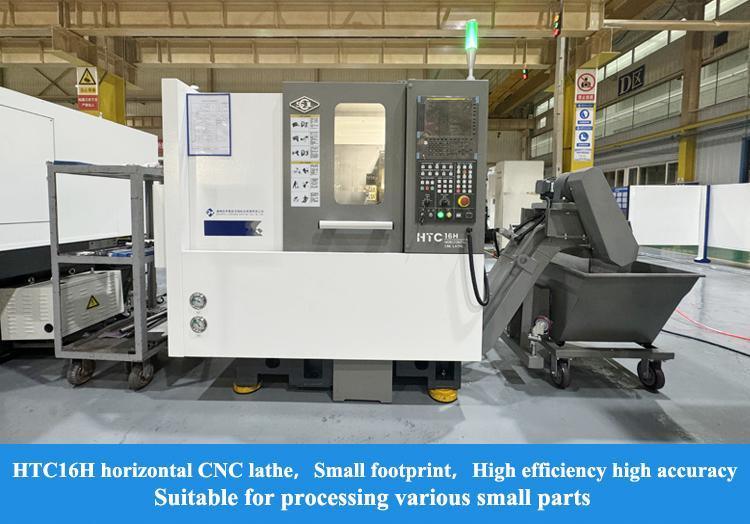

High performance lathe featuringcompact structure satisfies yourrequirements for high efficiency andlow malfunction.The machine tool features compact structureand small floor space, reasonable layout offunctional parts,convenient operation andrepair of quill spindle structure, and ensureshigher stability and reliability. The machine tool bed is tilted at 45 ° andfeatures advantages of smooth chip removal oftilted bed. Integral full protection, better water proof andchip proof performance, excellent ergonomicsand convenience for operation.

Product Features:

1. High precision

♦ Feed shaft pretension structure

♦ High precision C3 ball screw

♦ Thermal stability structure of the whole machine

2. Efficient

♦ Spindle speed 5000rpm

♦ Two axes fast shift 30m/min

♦ High efficiency servo cutter tower

3. High performance

♦ Small footprint

♦ Chemical process standard

♦ Strict inspection standard


Product advantage:
♦ High quality sleeve spindle unit
Adopt imported bearings, large size bearing span, meet the requirements of high rigidity, high torque, high precision, easy installation and maintenance. The important joint surface is easy to realize the scraping process and ensure the contact rigidity. The symmetrical headstock structure improves the controllability of thermal deformation

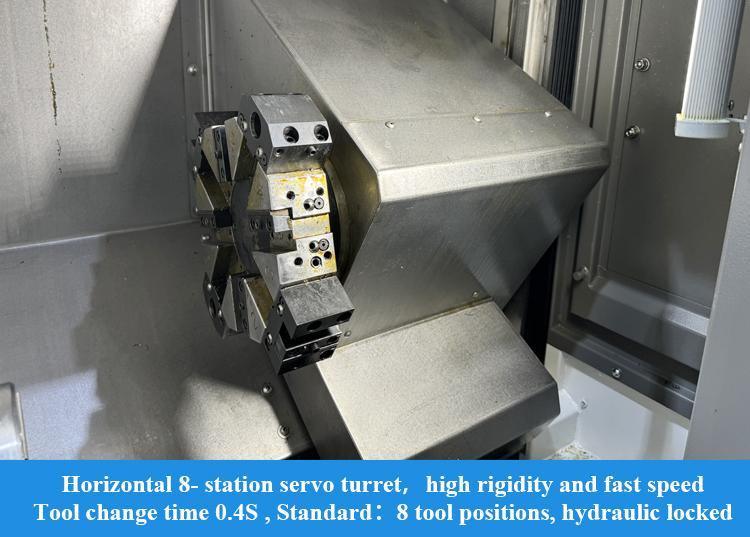

♦ Servo turret
Servo motor is used to control the precise rotation of the cutter head, and the tool change of the adjacent station only needs 0.4s, which is fast and the processing efficiency is high. Triple disc structure, hydraulic lock, full rigidity.

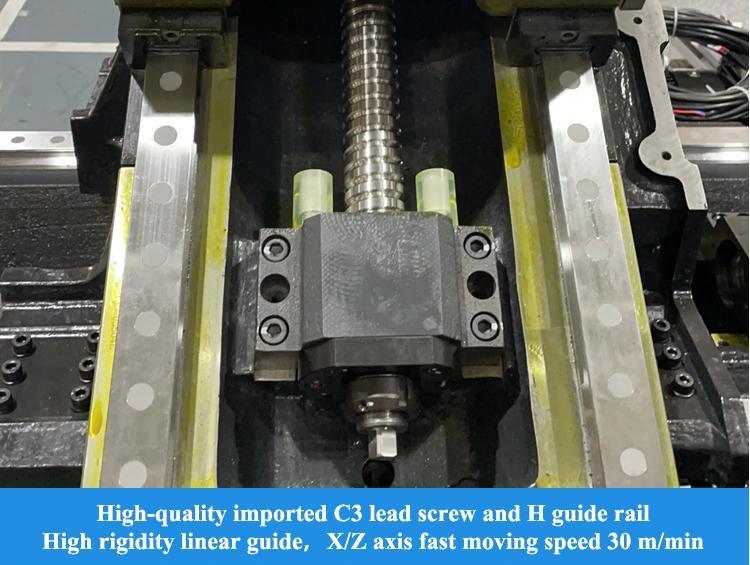

♦ Feed structure
The linear guide rail is used to optimize the rigidity, stability and life of the guide rail, while the two axes are fast 30m/min, and the processing efficiency is higher The X-axis adopts the pre-tensile structure to reduce the influence of temperature on accuracy and improve the stability of machining accuracy;

SMTCL HTC16H Horizontal CNC Lathe High Precision Small Parts Machining 1

Industry application:

HTC16H series CNC horizontal lathe is a small-size CNC product designed and manufactured toadapt to market demand on the basis of numerous years of technology accumulation and experience of ourfactory for production of CNC lathe. The machine tool features characteristics such as economical, efficient,energy-saving, high positioning accuracy and easy maintenance, and is the first choice product for turningmachining of small-size components of industries such as motor vehicle, hardware and electronics, etc.

SMTCL HTC16H Horizontal CNC Lathe High Precision Small Parts Machining 2

Product Paramenters:
Items
Unit
HTC16H(Q)
Maximum turning diameter
mm
Φ 160
Maximum turning length
mm
160
Maximum swing diameter over the bed
mm
Φ 420
Maximum swing diameter over the slide
mm
Φ 160










Spindle
Spindle nose type

A2-5​
Front bearing inner diameter
mm
Φ 90
Spindle taper and hole size

1:20 ; Φ 62
Diameter of spindle hole
mm
Φ 56
Maximum bar diameter
mm
Φ44
Standard chuck size
inch
6
Maximum spindle speed
r / min
5000
Spindle rated torque
Nm
35 ( 2000r / min )
Spindle maximum torque
Nm
70 ( 1500r / min )
Main motor output power continuous/ 15 minutes
kW
7.5 /1 1


Two axes
X/Z axis rapid traverse speed
m/min
30
X-axis travel
mm
145
Z-axis travel
mm
205





Tool Turret
Tool turret type

Horizontal 8- station servo tool holder
Tool turret center height
mm
63
Tool turret indexing repeat positioning accuracy
Sec.
±1.6
If could choose the tool from the tool disc nearby

yes

Cooling and chip removal
Cooling pump pressure
bar
1.5
Cooling pump flow
L/min
30
Water tank capacity
L
70
Chip conveyor form

Chain plate type




Other
Spindle center distance from bed bottom
mm
926
Machine tool net weight
kg
2600
Total power capacity
kVA
23
Machine tool dimensions (length x width x height)
mm
1750 ×1580 × 1650
Standard configuration:

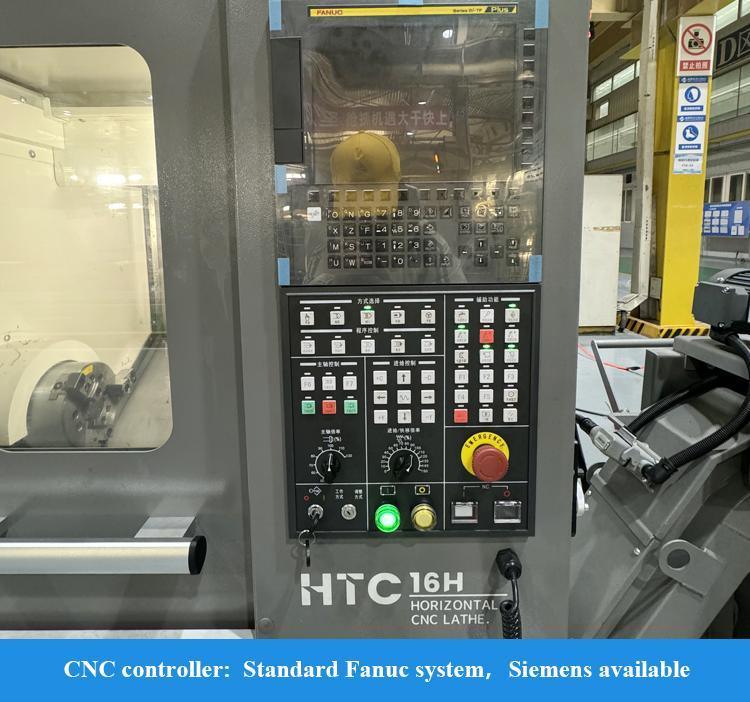

1,FANUC-0i-TF Plus (5) System (H/S Series)
2,GSK988TA System (Q Series)
3,Sleeve-type spindle
4,Hollow chuck oil cylinder
5,8-station servo tool carriage

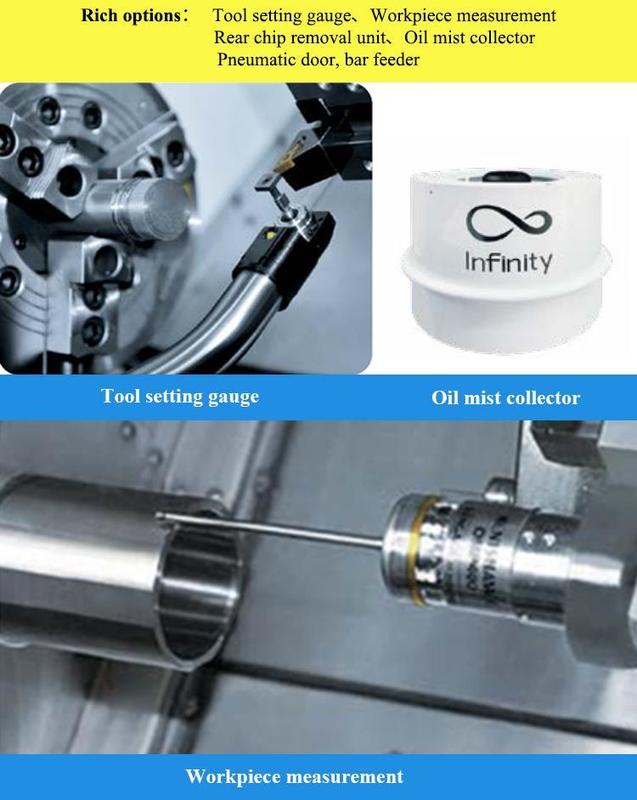

Optional configuration:
1,Siemens system
2,Tool setting gauge
3,12-station servo tool carriage
4,Workpiece measurement
5,Power tool carriage
6,Oil mist collector
7,Rear chip removal unit
8,Tool damage detection
9,Pneumatic door

Test items
National standard
factory standard
Accuracy of machined workpiece
IT6
IT6
Roundness of machined workpiece
0.005 mm / Ф3 2 mm
0.00 2mm / Ф40mm
Consistency of machined workpiece
0.015 mm / 1 05 mm
0.008mm / 1 2 0mm
Flatness of machined workpiece
0 .015 mm / Ф 12 0 mm
0.0 06 mm / Ф 1 00 mm
Surface roughness of machined workpiece
Ra 1.6μm
Ra 1.25μm
Positioning accuracy
X-axis
0.022mm
0.008 mm
Z axis
0.022mm
0.008 mm
Repeat positioning accuracy
X-axis
0.006mm
0.004mm
Z axis
0.006mm
0.004mm

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected

2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
SMTCL HTC16H Horizontal CNC Lathe High Precision Small Parts Machining 3
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
SMTCL HTC16H Horizontal CNC Lathe High Precision Small Parts Machining 4

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
