1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe

Nombre de la Marca: HD
Número de modelo: CW61125
Lugar de origen: PORCELANA
Certificación: CE ISO
Cantidad mínima de pedido: 1 set
Precio: Negociable
Capacidad de suministro: 50 conjuntos por mes
Las etiquetas

Máquina convencional del torno de CDE-A

Máquina convencional horizontal del torno

Máquina de torneado del torno del metal manual

Detalles del producto

Marca: HD Tipo: CW61125
Nombre del producto: Tornos manuales pesados Diámetro máximo de oscilación sobre el lecho: 1250 mm
Diámetro máximo de oscilación sobre el vagón: 900 mm Anchura de la cama: 970 mm
Duración máxima de la pieza de trabajo: 1000mm-15000m m Diámetro de diámetro interior de eje: F130 mm
Resaltar

Guide Rall Width Of 970mm

,

Max.length of wordpiece 20m

,

Spindle bore 130mm

Descripción del producto

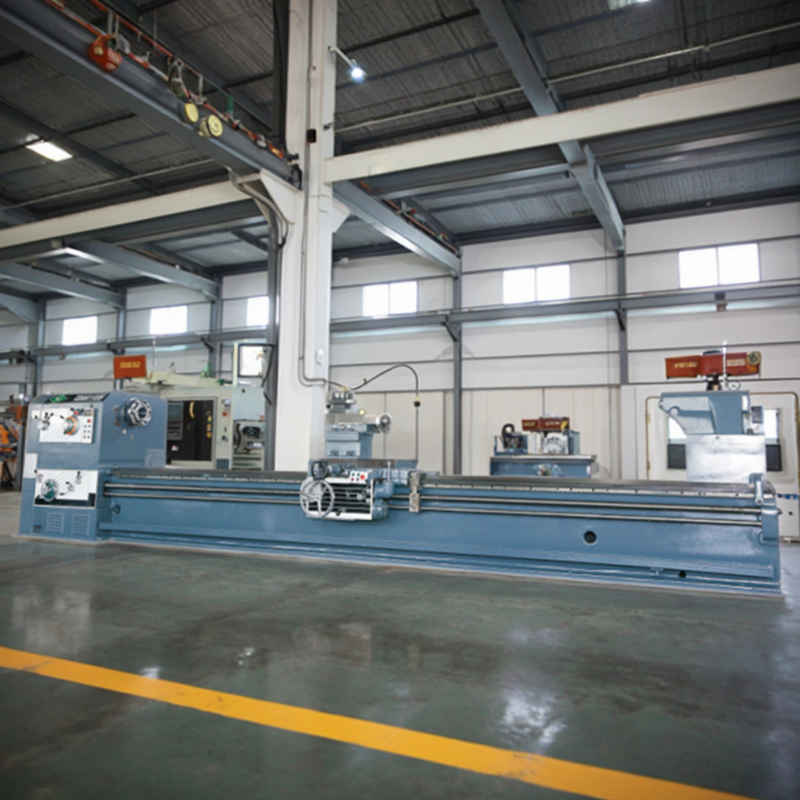

1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 0

Product Description:

1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe

Features of this machine: This machine tool is a regular horizontal lathe, which adopts advanced processing and assembly technology, highprecision, good stablity, high rigidity, high speed, large through-hole diameter, and wide range of use. lt is designed for turing blackmetal, non-ferrous metal, and some non-metalic material parts with hard alloy and hich-speed steel cuting tools. This machine toois suitable for rough and fine machining of various complex rotary surfaces, and can also perform cuting, boring, threading and other machining.
The main structure of this machine tool is a solid loor type bed body, plastic coated guide rall surace, good wear resistance, and guide rallwidth of 970mm. The guide rall adopts medium frequency Quenching, processing length can reach up to 20 meters. The feed adopts theprinciple of mechanicaltransmission.

Product Details:

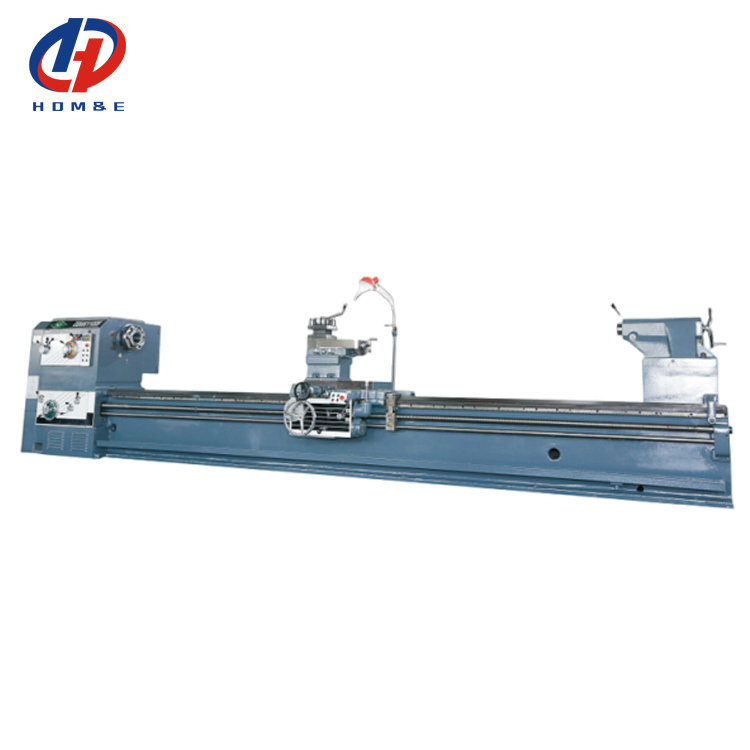

1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 1

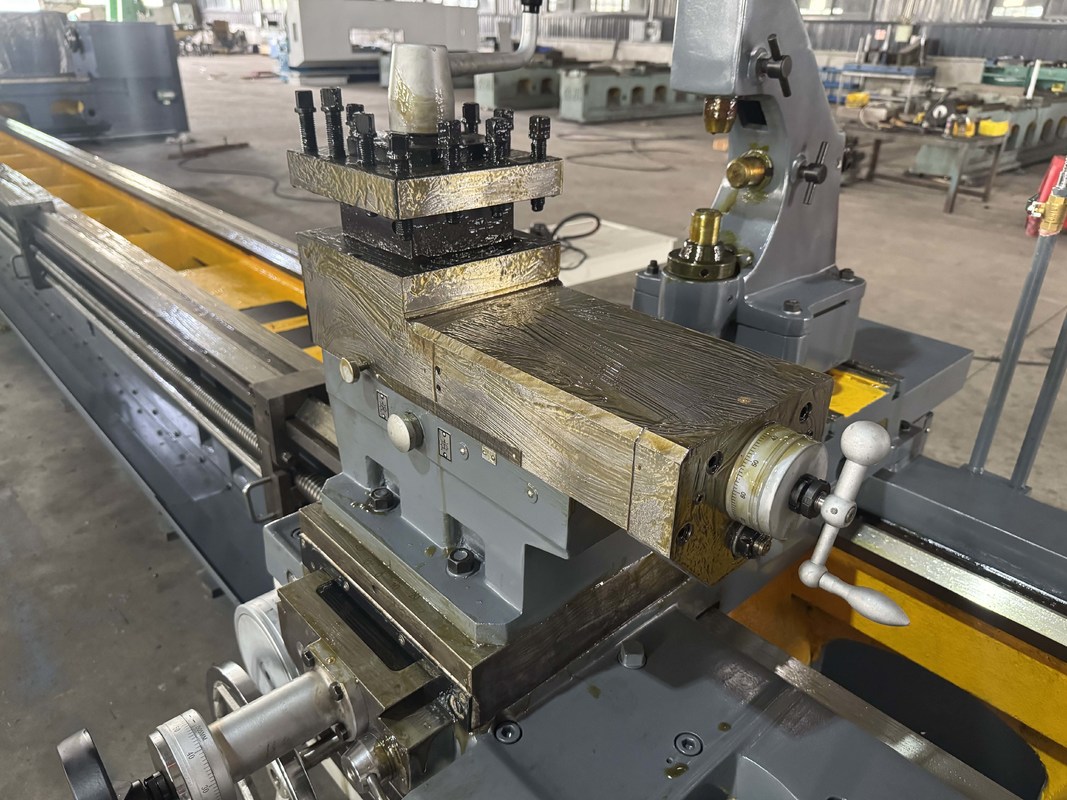

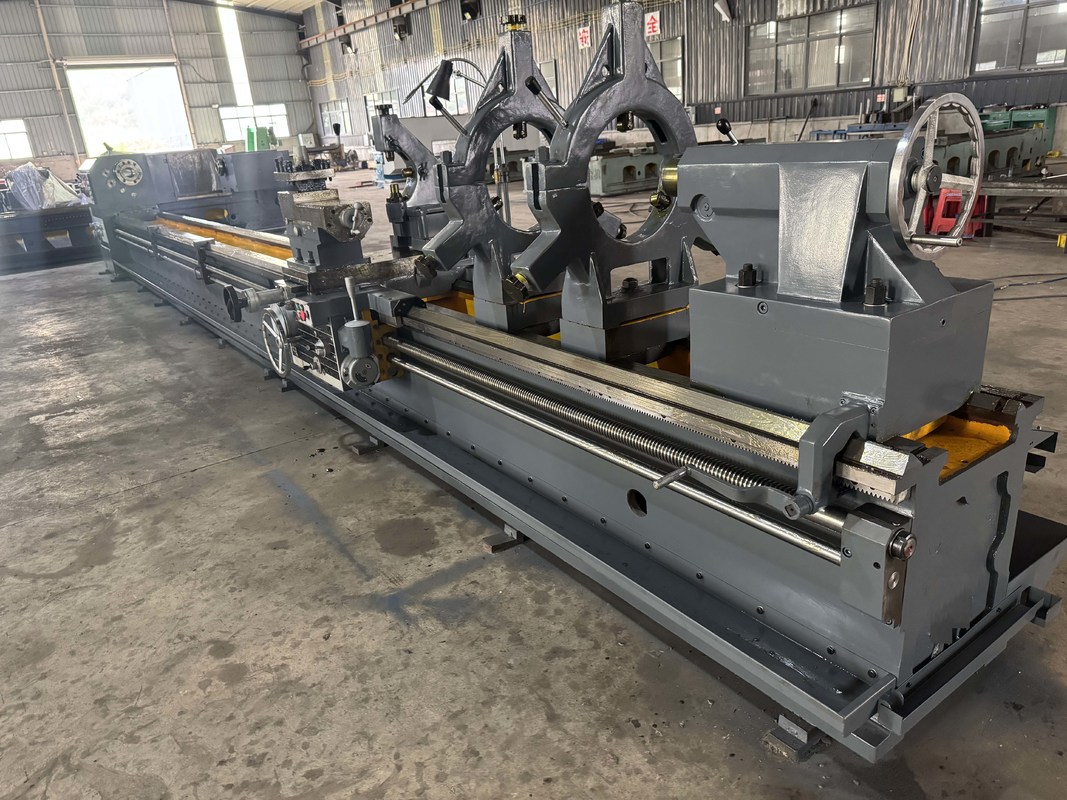

1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 21-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 3

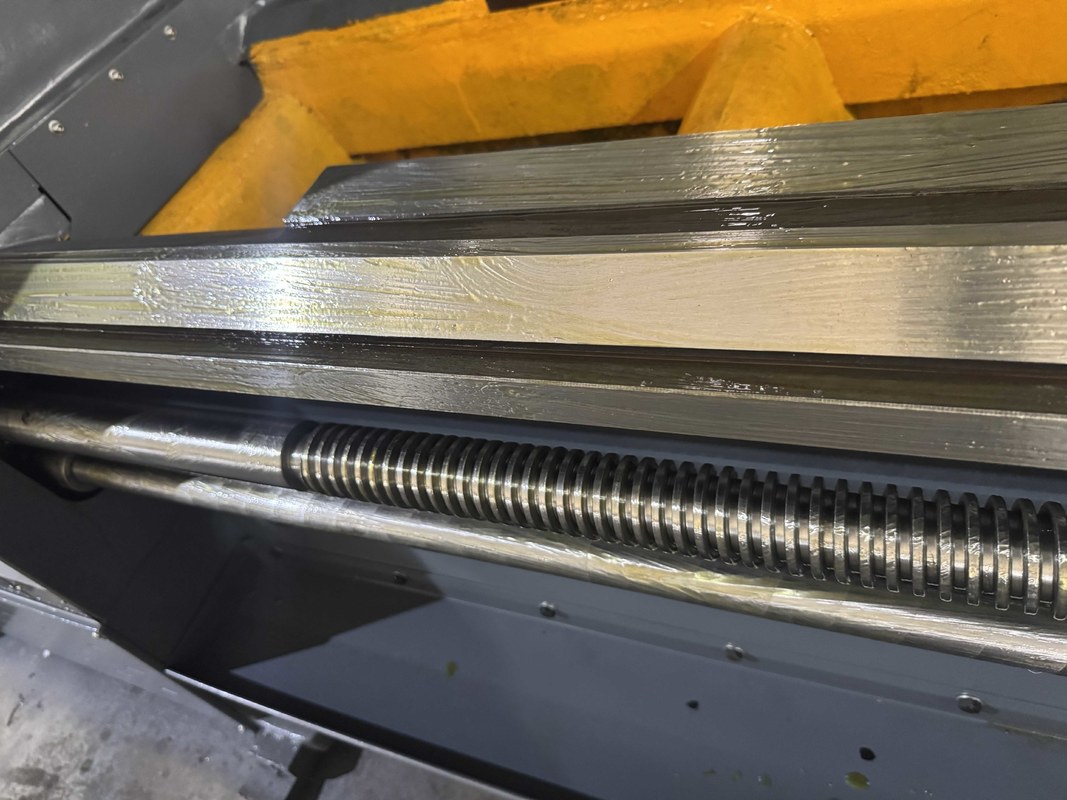

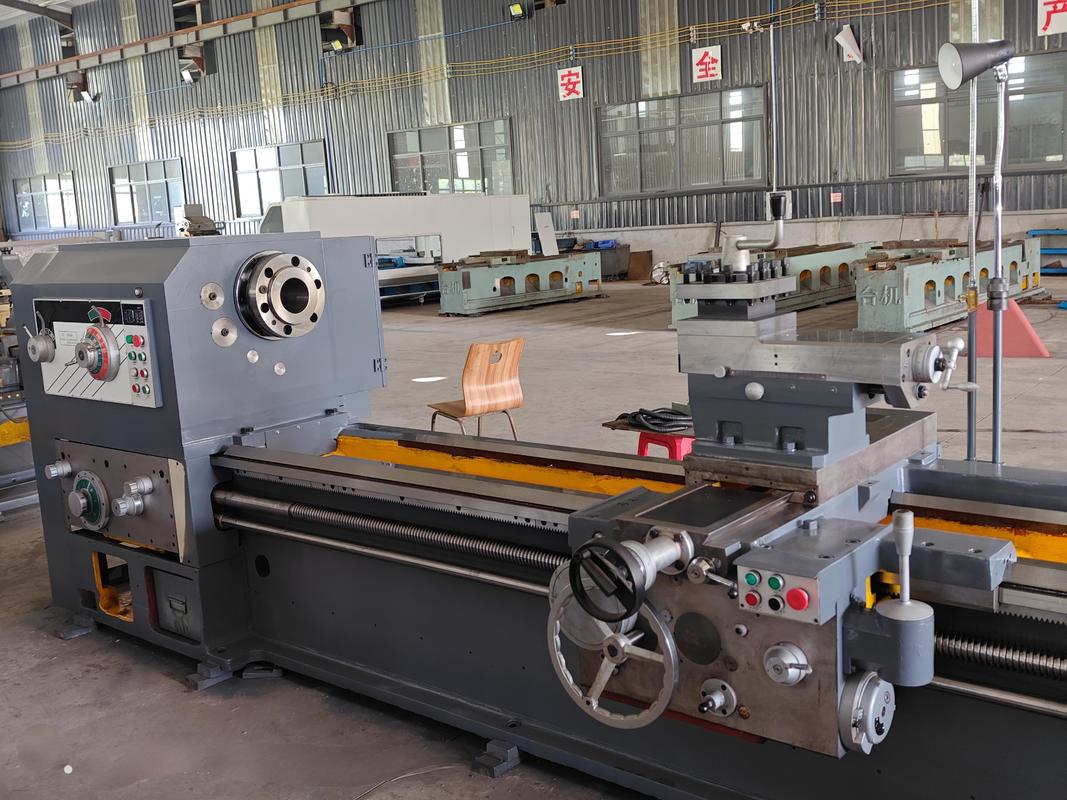

1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 41-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 5

1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 61-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 7

1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 81-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 9

Product Paramenters:

Project
Main parameter
Unit
CW61125



Plus work fan around
Max.swing over bed
mm
1250
Max.swing over carriage
mm
900
Max.length of wordpiece
mm
1000/1500/2000/3000/4000/5000/6000/8000/10000/12000/15000
Max.cutting length
mm
850/1350/1850/2850/3850/4850/5850/6850/7850/9850/11850/14850
Two top max. weight bearing capabilities
kg
10000(15000)




Spindle
Spindle bore
mm
130
Taper hole in spindle
mm
1:20(140 Metric)
Main hole in spindle
ISO
A2-15
Diameter of the front bearing position of the spindle
mm
220
Number of types of spindle rotation and rotational speed
r/min
21 kinds
3.15-315
Number of spindle reversals and rotational speed
r/min
21 kinds
5-400
Power of main motor
kw
22(30)
Manual chuck diameter
mm
1000


Bed structure
Width of bed
mm
970
Bed structure
mm
Whole floor bed frame
Lateral feed
mm
730
Vertical feed
mm
1000-15000
Rapid horizontal/vertical movement
m/min
4/8







Enter to fanaround
Longitudinal feedes 64 Kinds
mm/(in/r)
0.1~12
Transverse feeds 64kinds
mm/(in/r)
0.05~6
64 feed rates on the upper tool rest
mm/(in/r)
0.025-3
Metric threads 56 kinds
mm
1~240
Whitworth threads 56kinds
tpi
30-1/4
Module threads 53 Kinds
mm
0.5~60
Diametral threads 24 kinds
D.P.
60-0.5
The ratio of the feed rate of the upper tool holder to the longitudinal feed rate
mm
1/4
Machine tool screw pitch
mm
12
Fast motor power
kw
1.5


Tailseat
Diameter of tailstock sleeve
mm
160(220)
Tail socket travel
mm
300
Tailstock sleeve taper hole
mm
Morse 20
Top socker taper(metric)
metric
Number 6






Tool carrier
Knife holder form
type
vertical 4 station
Cutting tool cross-sectional dimensions
type
45×45
Rotation angle of knife holder

±90°
Max. lateral travel of the lower knife holder
mm
500
Max. lateral travel of upper knife holder
mm
300
Quick vertical/horizontal movement speed of the tool holder
mm
3740/1870
Quick movement speed of small knife holder
mm/min
935
Cooling pump motor power
mm/min
0.125



Inspection items
Processing accuracy
kw
IT6/IT7
Processing roundness
level
0.008
Processing workpiece cylindricity
mm
0.03/300
Processing workpiece flatness
mm
0.033/500
Roughness
mm
Ra1.6
Spindle end face
mm
0.008
Machine tool standard accessories: spindle and tail frame top sleeve: Φ1000 four jaw chuck: Adjusting pad iron; Anchor bolt; Cool the water tank.
Note:3000mm and above 3000mm with 50-600mm center frame;Φ50-250mm tool holder

Optional accessories:Φ1250 four jaw chuck:Φ250-800mm center frame
